SS Cartagena

lost in 1928

(zoom in for a closer look)

This false colour projection of multibeam sonar data, where colours represent different depths below the surface (blue representing the deepest and brown the shallowest) illustrates the depth and physical composition of a square mile of seabed located approximately ten miles northwest of the Great Orme. The area contains the wreck of the 38m converted trawler originally designed to serve as a minesweeper during WW1. The Cartagena, which was lost in 1928, can be seen towards the central part of the image lying almost upright with the bows facing towards the northwest.

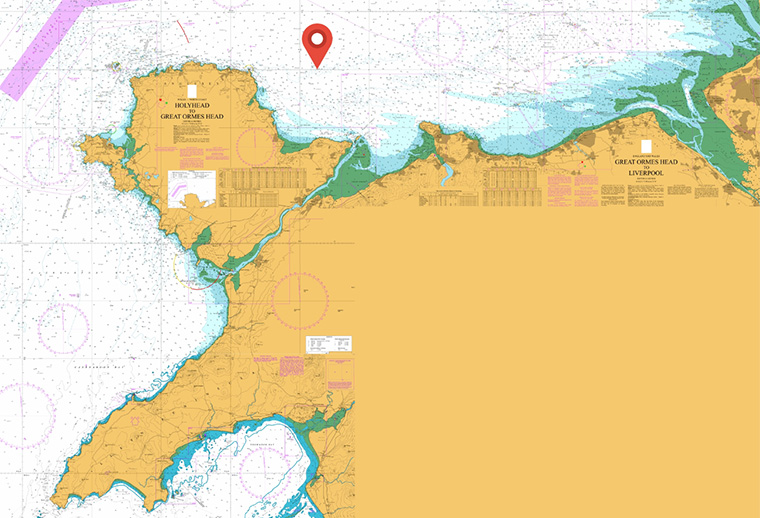

North Wales map with site highlighted

The "North-up" image illustrates the undulating nature of the seabed and varying composition of sediments in this part of Liverpool Bay where water depths are between 30m- 40m. The large 10m thick asymmetric sandbanks which dominate the image overlie more ancient glacial deposits and are orientated perpendicular to the moderate strength (1.5m/s) northwest to southeast flowing tidal currents and reach a maximum height of seven metres (the wreck reaches a maximum height of five metres above the surrounding seabed). Superimposed on these large-scale features are complex arrangements of smaller (>1m) asymmetric sand waves also orientated perpendicular to the tidal currents and these migrate southeast by a few metres a year. The deepest areas of the site consist of thin layers of modern sediment (>1m) overlying coarser and denser sediments (gravels and cobbles) which are the modified remnants of glacial deposits.

More information about the Cartagena can be found on WreckSite.
And you can read the formal investigation report detailing the loss here.

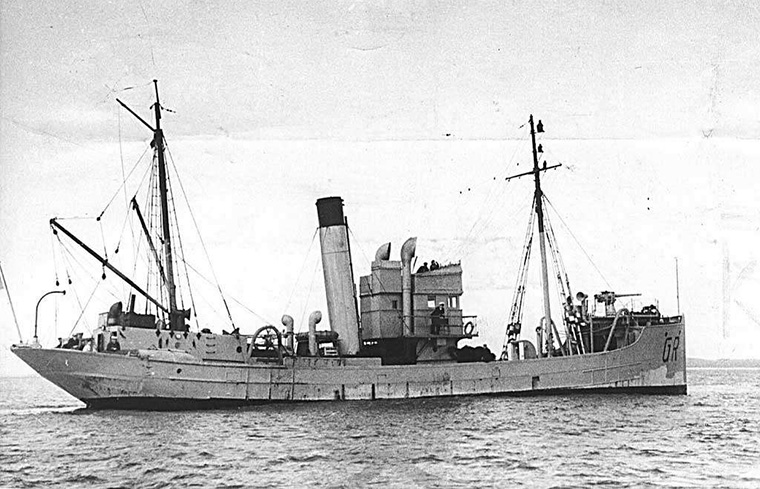

Archive photograph of the Cartagena

Cartagena view 2 (Closer view)

Cartagena view 2 (View towards the bow)
